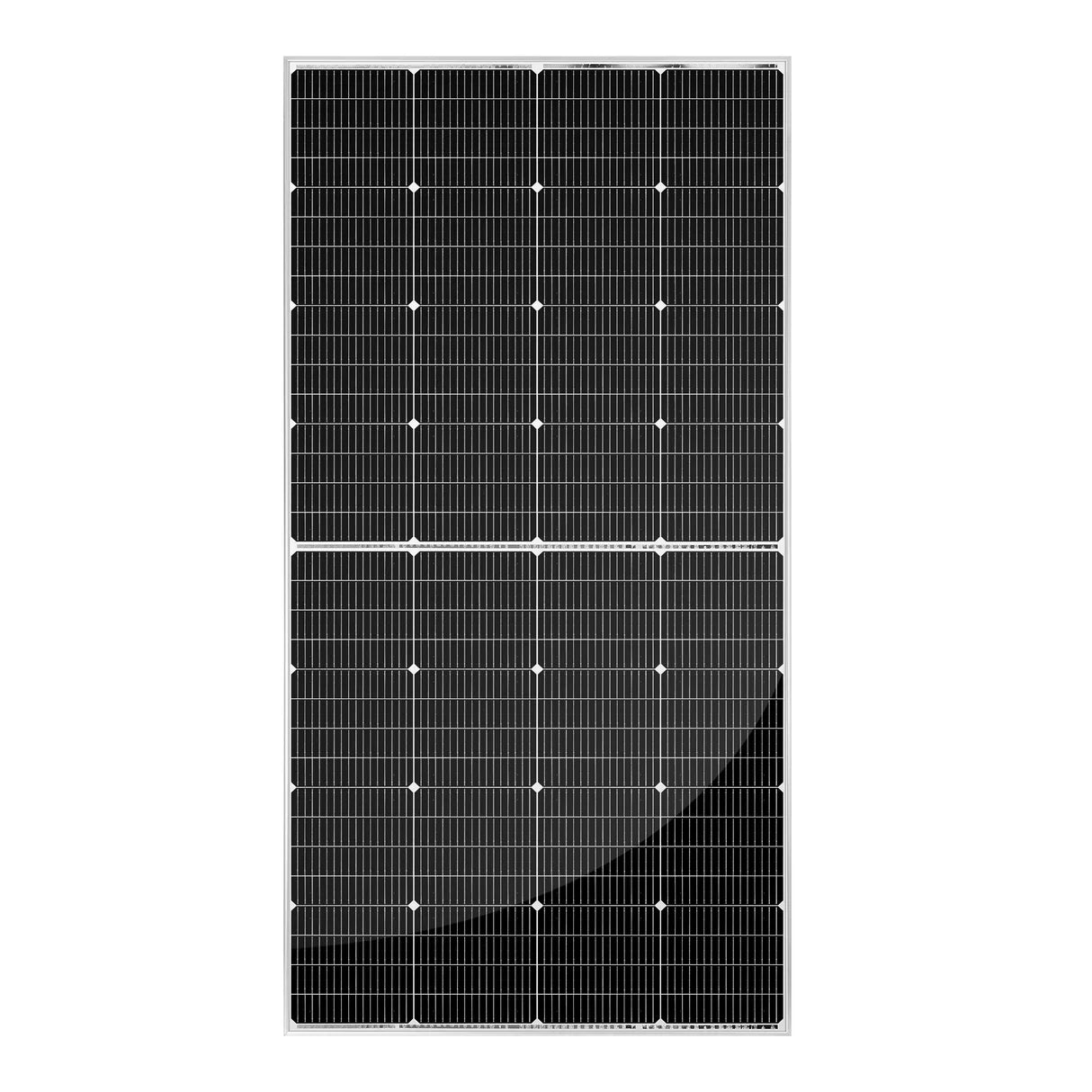

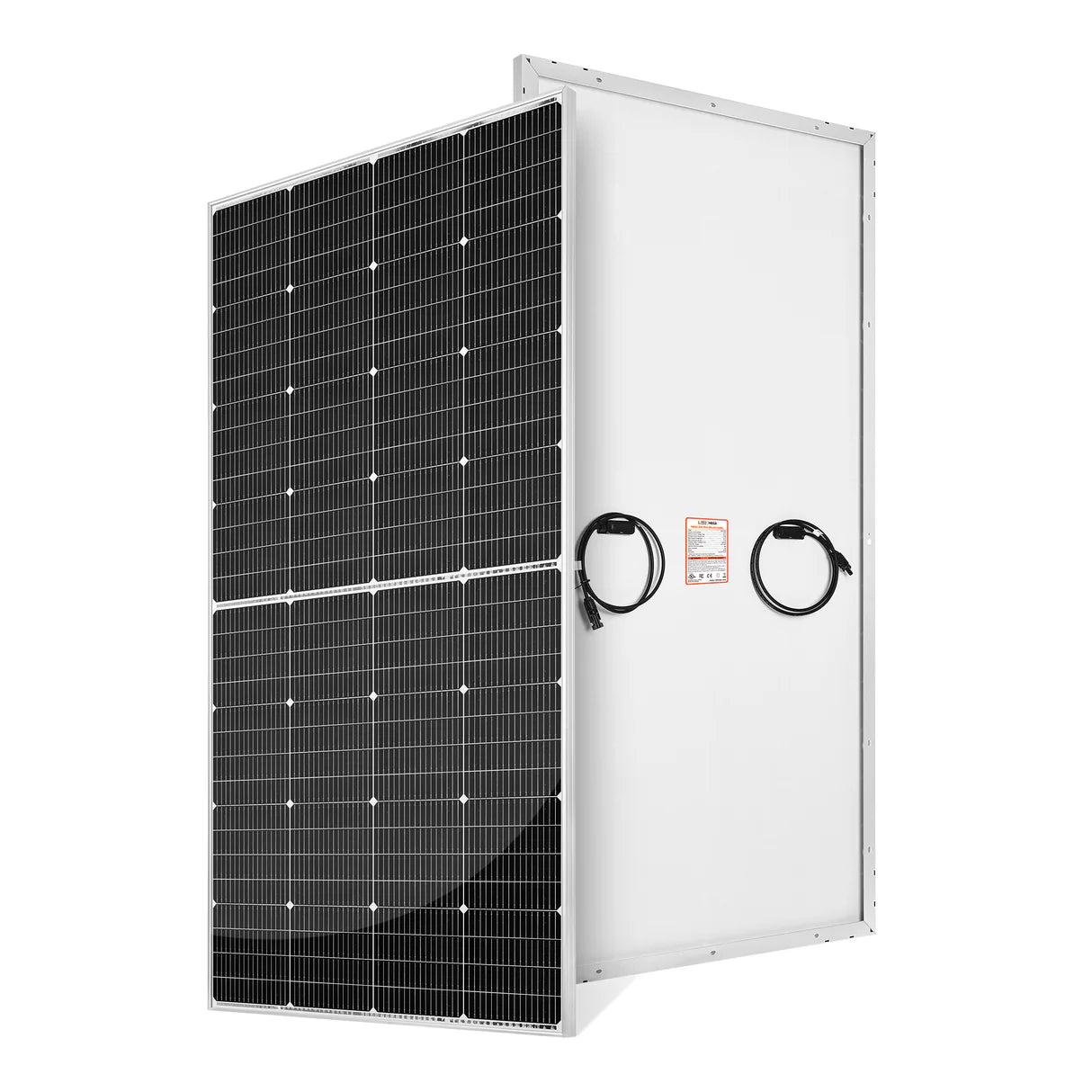

MEGA 250 PRO – 24V 250W SOLAR PANEL

Premium 24V Power | 250W Output | Split-Cell Technology | UL Certified | Built for Off-Grid Systems

The MEGA 250 PRO is built to deliver 250 watts of dependable 24V solar power for your off-grid energy needs. Featuring advanced split-cell technology, anti-reflective tempered glass, and a corrosion-resistant aluminum frame, this panel provides maximum energy yield and long-lasting performance in all climates.

Ideal for RVs, tiny homes, cabins, and mobile setups, it's engineered to perform efficiently in both sunny and low-light conditions with professional-grade reliability and UL certification.

24V Optimized Performance

250W maximum power with 36.9V operating voltage specifically optimized for 24V battery systems, delivering efficient charging and reduced voltage drop.

Advanced Split-Cell Design

Split-cell technology with anti-reflective tempered glass maximizes light absorption and energy yield while reducing hotspot formation and performance losses.

Professional Durability

UL certified with corrosion-resistant anodized aluminum frame and -40°F to 185°F operating range for reliable performance in extreme environmental conditions.

Why Choose MEGA 250 PRO?

24V System Optimization

36.9V operating voltage and 44.7V open circuit voltage specifically designed for 24V battery systems, providing optimal charging performance and efficiency.

Lower current (6.78A) reduces system losses and allows for smaller gauge wiring, making installations more efficient and cost-effective.

Advanced Technology Features

Split-cell technology divides cells to reduce resistance losses and improve performance in partial shading conditions, maximizing energy harvest.

Anti-reflective coated tempered glass increases light transmission and absorption for higher energy yield in all lighting conditions.

Professional Installation Ready

Pre-drilled mounting holes compatible with Z-brackets, ground mounts, pole mounts, and tilt mounts for versatile installation options.

Quick-connect solar cables and compatibility with PWM/MPPT charge controllers and on-grid/off-grid inverters for flexible system design.

MEGA 250 PRO — Key Features

250W 24V Optimized Performance

250W maximum power with 36.9V operating voltage specifically designed for 24V battery systems, delivering efficient charging with reduced current (6.78A) for lower system losses.

Advanced Split-Cell Technology

Split-cell design reduces resistance losses, minimizes hotspot formation, and improves performance in partial shading conditions with anti-reflective coated tempered glass for maximum light absorption.

Professional-Grade Durability

UL certified with corrosion-resistant anodized aluminum frame, -40°F to 185°F operating range, and robust construction designed to withstand harsh weather conditions for decades of reliable service.

Comprehensive Warranty Protection

25-year limited power output warranty and 10-year workmanship warranty backed by UL certification, ensuring long-term performance reliability and investment protection.

Universal System Compatibility

Works seamlessly with PWM and MPPT charge controllers, compatible with on-grid and off-grid inverters, and supports series or parallel connections for flexible system design.

Technical Specifications

Electrical Specifications

Maximum Power (Pmax)	250W
Voltage at Pmax (Vmp)	36.9V
Current at Pmax (Imp)	6.78A
Open Circuit Voltage (Voc)	44.7V
Short Circuit Current (Isc)	7.24A
Max System Voltage	1500 VDC

Physical Specifications

Dimensions	60.6 × 29.9 × 1.2 in
Weight	26.9 lb
Frame Material	Anodized Aluminum
Glass Type	Anti-Reflective Tempered
Cell Technology	Split-Cell Design
Mounting	Pre-drilled Holes

Environmental & Warranty

Temperature Range	-40°F to 185°F
Power Warranty	25-Year Limited
Workmanship Warranty	10-Year
Certification	UL Certified
Connections	Quick-Connect Cables
Controller Compatibility	PWM & MPPT

Perfect Applications

Off-Grid & Mobile Systems

RV & Tiny Home Power

Ideal for RVs and tiny homes with 24V electrical systems, providing efficient 250W power for appliances, lighting, and device charging with professional reliability.

Off-Grid Cabins & Retreats

Perfect for remote cabins and off-grid properties where reliable 24V solar power is essential for daily energy needs and system performance.

Marine & Mobile Applications

Corrosion-resistant construction and 24V optimization make it suitable for boats, work vehicles, and other mobile applications requiring dependable power.

Professional Installations

24V Solar Arrays

Optimized for 24V battery systems with lower current operation, reducing system losses and allowing for more efficient larger installations.

Hybrid Power Systems

Compatible with both grid-tied and off-grid inverters, making it suitable for hybrid systems that combine solar with generator or utility power.

Commercial & DIY Projects

Professional-grade construction with easy installation features makes it suitable for both commercial installations and serious DIY solar projects.

Ready for Professional 24V Solar Power?

Experience premium solar performance with the MEGA 250 PRO. Your professional solution for 24V off-grid systems with 250W power, advanced split-cell technology, UL certification, and comprehensive warranty protection for decades of reliable service.

250W 24V optimized performance, advanced split-cell technology, and professional UL certification — the premium solar solution for serious off-grid power systems.

MEGA 250 PRO – 24V 250W Solar Panel. Split-cell technology with anti-reflective tempered glass. UL certified with 25-year limited power output warranty and 10-year workmanship warranty. Professional installation recommended.
